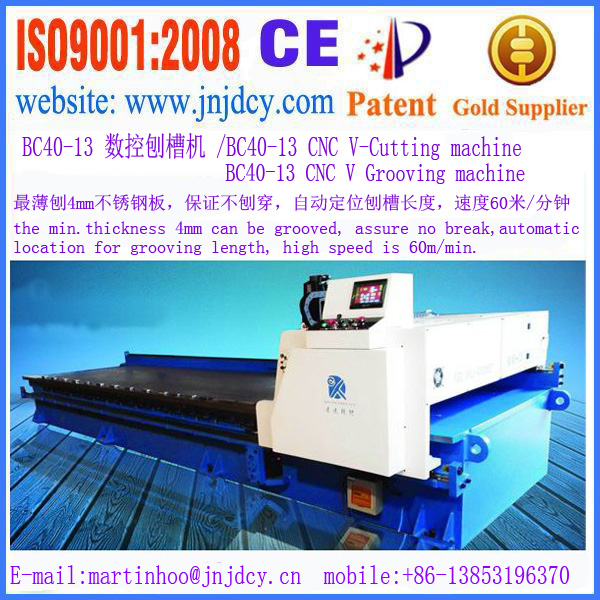

Our BC40-13 CNC metal sheet V grooving machine
has passed ISO9001:2008, CE certificate. And at the same time, it is passed test of Chinese exporting government and authorize us to exporting.

3, Video link:


4, Instruction:
CNC keyway planer is also called CNC metal groover, steel sheet grooving machine, stainless steel V groover, which is mainly used for making groover in steel sheet. Then it is convenient for steel sheet bending.
Usage: before bending, grooving the steel sheet, then bending, the corner is more beautiful!
BC40-13 CNC metal sheet V grooving machine
is used in metal steel industry which requires high precision processing elevator, decorative material, stainless steel processing, household electric appliance and so on. It is better effect for welded-steel plate construction, annealing treatment and stability. Working accuracy efficiency is higher and labor intensity is less.


5, Main characteristics:
1) Using double house type, which is convenient for up-down materials.
2) Without environment pollution of gas-cooling.
3) Two axis numerical control with high processing accuracy.

6, Technical parameters:

Name	BC40-13 CNC metal sheet V grooving machine
Working range	Max of processing sheet length	4m
	Max of processing sheet width	1.3 m
	Max of grooving depth	1.5 mm/time
location accuracy	Y axis	±0.1mm
	Z axis	±0.01mm
knife quantity		4 pcs
Grooving speed		50m/min
Shifting speed	Y axis	10m/min
	Z axis	8m/min
Worktable size	length	4m
	width	1.3m


Technical index:

Z axis resolution	±0.01
Y axis resolution	±0.1
Max speed of Y axis location (m/min)	10
Max speed of Z axis location (m/min)	4


7, Configuration Details:

CNC control system	Mitsubishi of Japan
Display	STN dual color LCD display with pels 320x240
Quantity of axes	2 axes
Driving method	AC servo
PLC function built-in, less electrical equipments and more reliable	yes
Motor of Y and Z axes	Full numerical AC servo motor (Panasonic or Mitsubishi of Japan)
Motor of X	Variable frequency motor(LG)
Guide screw	High precision ball screw(PMI of Taiwan)
Guide	High precision straight guide(PMI of Taiwan)
Coder	Built-in


8, Price and payment term:
8-1 price:
Contact with me forwardly. There is discount price for you!

8-2 payment term: (ESCROW payment is safer and convenient for you)
30% deposit and the balance paid before delivery by T/T.

9, Delivery time:
30 days after received the 30% deposit by T/T.


11, Structure of machine
